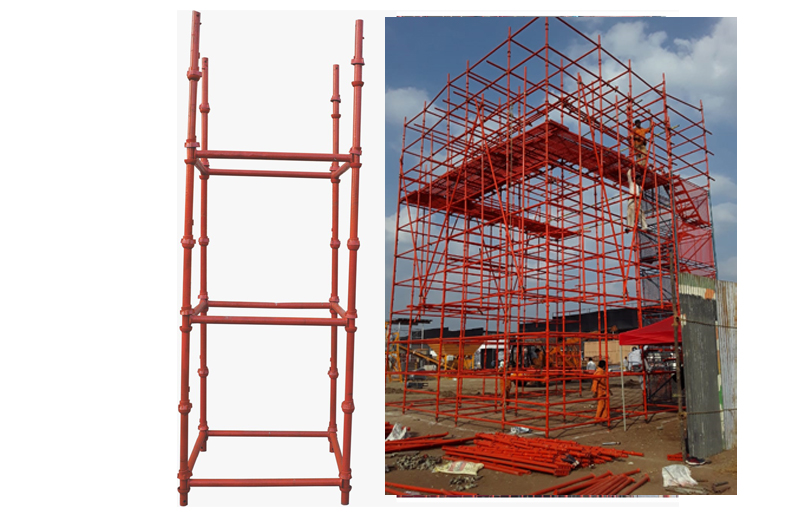

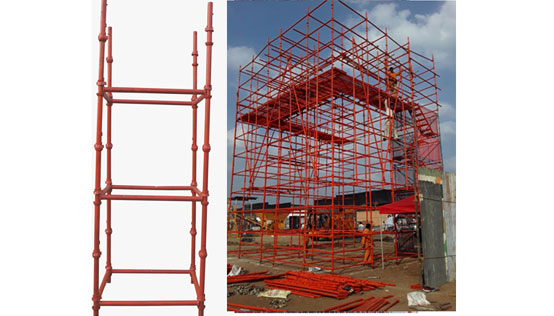

Cup Lock systems

cuplock systems

Specifications

Made out of 40 NB ' B ' class confirming to IS 1161/1239 forged end blades are welded to both ends of tubes.
Cups are provided at 500mm c/c in the standard product.cups at 1000mm c/c is optional.


cuplock
Verticals
Sizes Wt. ( Approx )
0.70 mts. 3.700 kgs.
1.00 mts. 5.350 kgs.
1.50 mts 7.200 kgs.
1.80 mts. 8.100 kgs.
2.00 mts. 9.900 kgs
2.50 mts. 11.750 kgs
3.00 mts. 13.500 kgs.

Horizontals
Sizes Wt. ( Approx )
M.S.Ledger 0.50 mts. 1.800 kgs.
M.S.Ledger 1 mts. 3.500 kgs.
M.S.Ledger 1.5 mts. 5.100 kgs.
M.S.Ledger 2 mts. 7.050 kgs.
Main Lift 0.50 mts. 1.00 mts. 1.50 mts. 2.00 mts
Vertical Loading 1.800 kgs. 3.500 kgs. 5.100 kgs. 7.050 kgs.
