Products available on hiring basis
New arrival

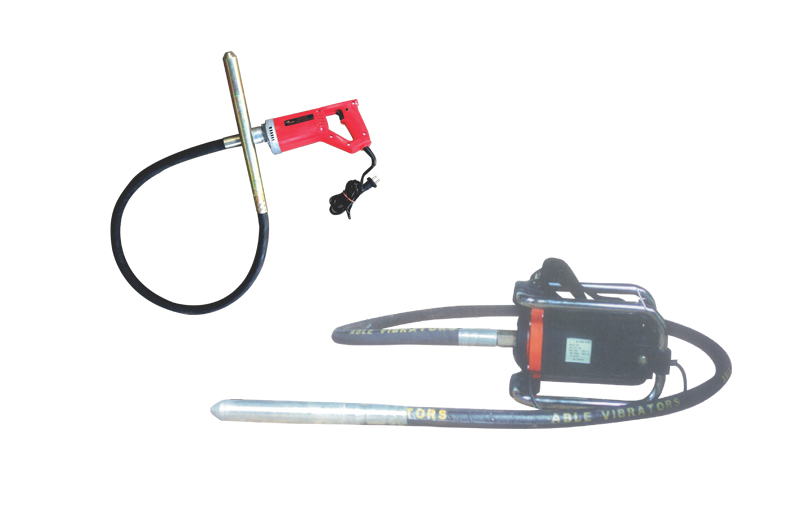

High Frequency Portable Vibrator
Features :
- Light Weight handy Vibrator With Exceptional Power
- Low maintenance and long lasting
- head, shaft and power unit are easily interchangeable without tools
- Ideal for medium to high slump concrete application
- wire braided hose for long lasting work
Special Features :
- High Carbon steel inner lining
- Crimped Connection Tube
- NO A.B.C end clips
- No soldering and puncturing
- Square head inner code made from spring steel wire
- No soldering and puncturing
- Square head inner code made from spring steel wire
- No soldering and puncturing
- Square head inner code made from spring steel wire
| Technical Details |
29mm |
39mm |
49mm |
| Diameter of Needle |
29mm |
39mm |
49mm |
| Length Of Needle |
337 |
318 |
312 |
| Vibrating Frequency(Hz) |
260 |
280 |
283 |
| Amplitude |
0.81 |
0.77 |
0.70 |
| Outer House Diameter |
30mm |
30mm |
30mm |
| Inner House Diameter |
10mm |
10mm |
10mm |
| Length Of Flexible Shaft |
3mtr |
3mtr |
3mtr |
| Motor Power |
1.63Kw |
1.63Kw |
1.63Kw |
| Voltage |
220volts |
220volts |
220volts |
| Amphere |
7.6Amp |
7.6Amp |
7.6Amp |
| RPM With Load |
12000 |
12000 |
12000 |
| Total Weight With Needle & Motor |
13Kg |
14Kg |
15Kg |
